Windmill Blade Transport Adaptor

5/5

The Windmill Blade Transport Adaptor is a specialized tool designed to simplify and secure the transportation of windmill blades. It’s crafted to fit various blade sizes, maintaining stability during transit on diverse terrains, from winding mountain roads to highways. The adaptor typically features a hydraulic system for easy blade adjustment, along with a 360 – degree rotation mechanism. This allows it to avoid obstacles like trees and power lines, ensuring safe and efficient delivery to wind farms.

WhatsApp
Add to cart

Products

Windmill Blade Transport Adaptor

100000 USD
Prices vary based on different parameters; this price serves merely as a reference.



The RICH Windmill Blade Transport Adaptor features a blade – lifting trailer with a small turning radius, reduced road – width occupation, and convenient reversing capabilities. It’s particularly well – suited for transporting wind turbine blades of diverse specifications.
SKU: Windmill Blade Transport Adaptor
GTIN: 6975766113421
MPN: RICH9411004
Brand: RICH

Windmill Blade Transport Adaptor Product Description

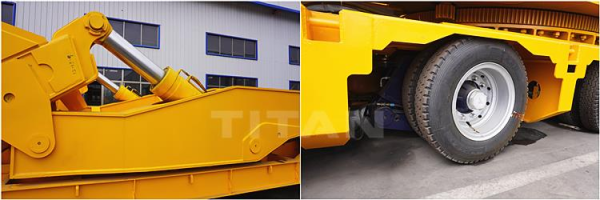

Blade Lifting Movement: When the oil cylinder is compressed, the RICH adaptor lifts the blade. Simultaneously, the blade – lifting frame shrinks towards the center of the rotating axis. The lifting – center – of – gravity’s movement track remains close to the rotating axis, effectively preventing transportation instability. The lifting angle ranges from 0 to 60 degrees.
Rotation Movement: The rotating oil cylinder drives the blade on the rotating bracket to deflect left and right along the center of the semi – trailer. The designed deflection angle is ± 45° (measured from the wind – blade tip’s landing position).

Specification

  • Brand: RICH Adapter trailer for 80m wind turbine blade transportation
  • Dimension: 16250mm×3700mm×5000mm
  • Loading capacity: 23.5 Tons
  • Axle: 3 lines 6 axles
  • Max rotation angle: 360°
  • Hydraulic station: 40KW Four – cylinder Diesel Engine
  • Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher
  • Transportable wind blade specification: 121 – 155 model
  • Diameter of lifting cylinder: 320mm; four – axis tire 8.25R16

Advantage

  1. RICH trailers with this adaptor are effective for transporting turbine blades on both mountain roads and curved routes.
  2. Traditional extendable trailers often face steering difficulties on mountain roads due to their length. The RICH blade – transport adaptor addresses this issue.
  3. The adaptor’s up – down lifting design simplifies the trailer’s steering process.



Through this video, you can gain in – depth knowledge about 3 – line 6 – axle windmill rotor blade lifters, windmill rotor blade trailers, RICH Wind Blade Lifter Adaptors, Wind Blade Adaptors, and Windmill Blade Transport Adaptors.



If you’re interested in exploring more types of wind – blade trailers, click “Wind Blade Trailer” to watch relevant videos!
Welcome to submit your inquiry! We’ll offer more details, including price, catalog, drawing, and videos.
