100000 USD
The price may vary according to different parameters. This figure serves merely as a reference.
The wind blade adapter from RICH is designed to transport wind blades to mountain tops. It’s capable of operating on steep slopes and narrow, winding mountain roads.
SKU: Adapter Trailer for 80m Blade Transportation
GTIN: 6975766110918
MPN: RICH9411001
Brand: RICH
Picture Quotation WhatsApp Add to cart

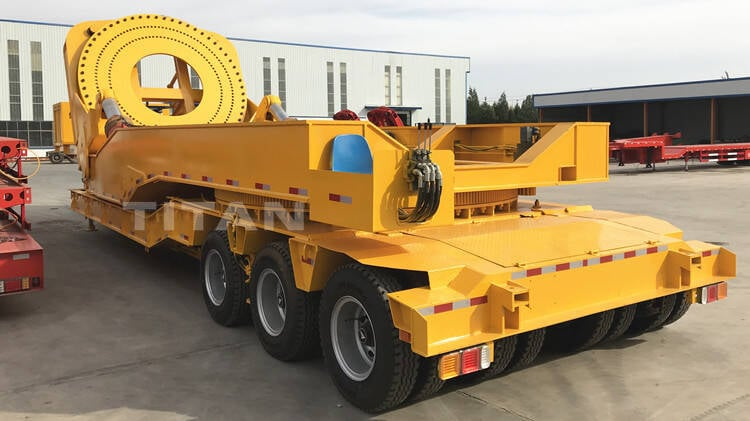

The RICH wind turbine blade adapter is mounted on a 3 – lines 6 – axles trailer. It’s an optimal solution for effectively avoiding obstacles like buildings and trees, particularly when navigating steep slopes or narrow, winding mountain roads.
This windmill blade transport trailer can handle blades of models 121 – 156. It’s suitable for wind turbine blades ranging from 59.5 to 76 meters in length, with the longest transportable blade reaching 80 meters. It can carry windmill blades weighing 13 – 23.5 tons.
The special wind turbine blade transportation trailer features hydraulic – controlled blade lifting and a 360 – degree self – rotation function during travel. This helps avoid various obstacles during transportation, including mountain slopes, trees, houses, bridges, and tunnels. By reducing the overall length of the windmill trailer body, it significantly improves curve – passing performance.
- Brand: RICH Adapter trailer for 80m wind turbine blade transportation
- Dimension: 16250mm×3700mm×5000mm
- Loading capacity: 23.5 Tons
- Axle: 3 lines 6 axles
- Max rotation angle: 360°
Please click “RICH Wind Blade Trailer” to watch the detailed video!
Welcome to submit your inquiry! We’ll offer more details, including price, catalog, drawing, and videos.
