60 Ton Lowbed Trailer
60 Ton Lowbed Trailer - 图片 2
60 Ton Lowbed Trailer - 图片 3
60 Ton Lowbed Trailer - 图片 4

60 Ton Lowbed Trailer

5/5

The 60 Ton Lowbed Trailer is designed for heavy – duty hauling. Built with high – strength steel, it balances light weight and durability. It usually has 4 axles (e.g., 14000 kg – capacity BPW axles) and 16 315/80R22.5 tires (like Triangle brand) for stable load – bearing. It comes with a 28 – ton Jost support leg, a 3.5 – inch Jost kingpin, and a Wabco brake system for secure connection and reliable braking. Its mechanical leaf spring suspension adapts well to various road conditions, protecting the cargo. The loading platform dimensions (about 10000x3000x1300mm) can be customized, and the overall size (around 14300x3000x3550mm) meets load – capacity and road – legal requirements. It also offers customization in dimensions, spare parts, suspension types, and additional accessories like extend plates for versatile applications.
WhatsApp
Add to cart

Products



60 Ton Lowbed Trailer
17500 USD

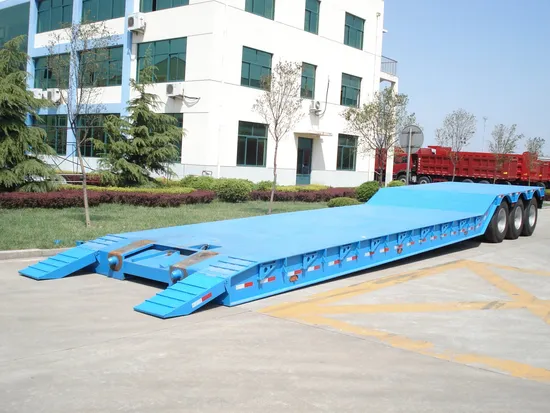

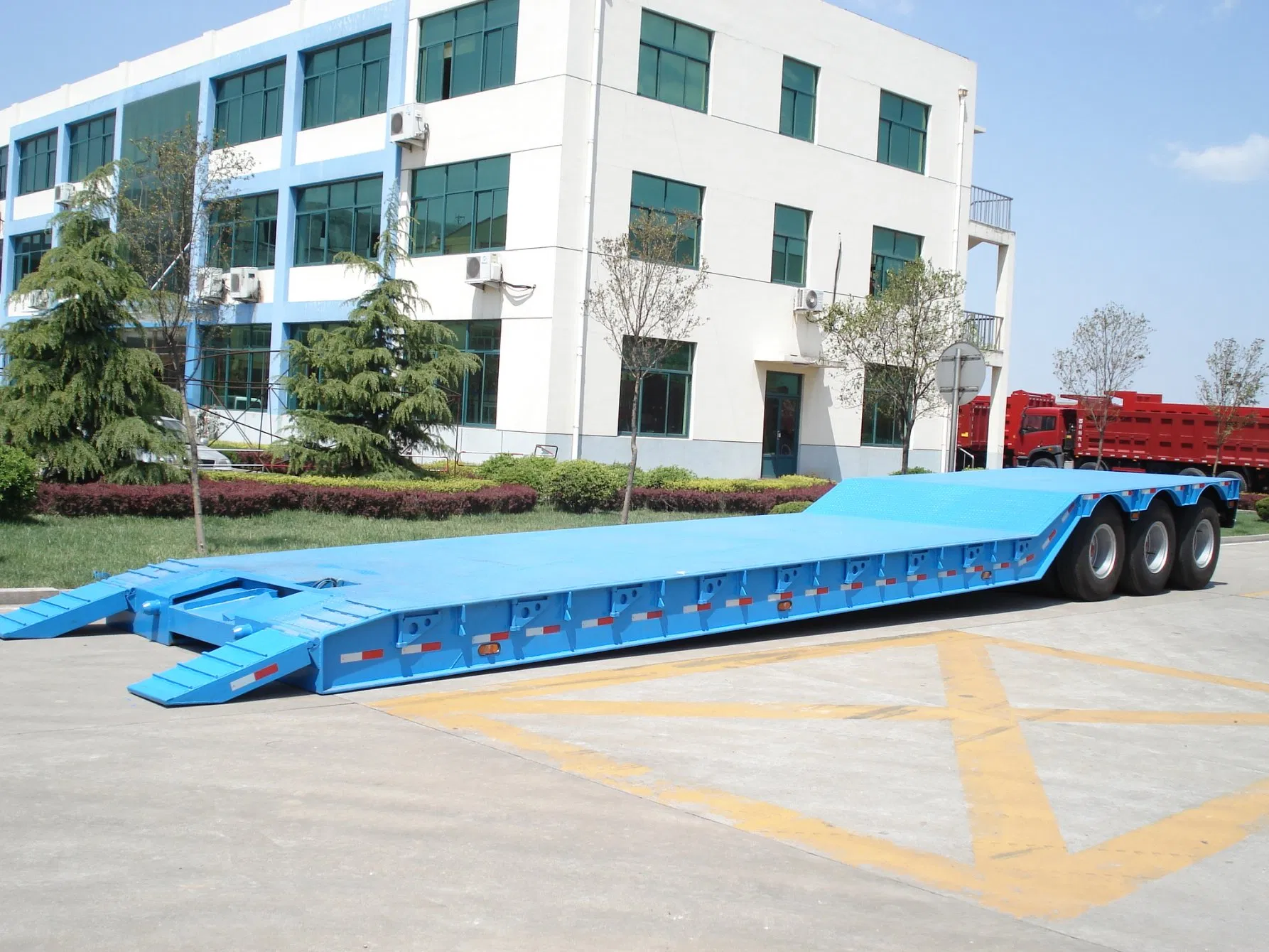

3 Axle 80 Ton Low Bed Trailer is engineered to carry 80 tons of cargo. It features a heavy – duty mechanical spring suspension, providing a high loading capacity. The main cargo platform is positioned low, which guarantees the stability of transportation during transit.
SKU: RICH9403TDP001
GTIN: 06975766110482
MPN: RICH9403TDP001
Brand: RICH
Picture Quotation WhatsApp Add to cart
Video of Tri Axle Lowbed Trailer Semi Trailer for Sale



Product description:
RICH 3 axle 80 ton low bed trailers are extensively utilized in the transportation of heavy machinery.
RICH low bed semi trailers are designed to endure concentrated force, resist bumps, and withstand distortion. They are constructed using HG60 High Strength Steel Material. This choice of material ensures that our RICH Excavator Trailers have a long operational lifespan and minimizes the need for unnecessary maintenance.



Advantage:



  1. The main beam is crafted from HG high – strength steel, enabling a high loading capacity.
  2. The side beam is made of “H” steel. This durable design effectively prevents the side beam from deforming.
  3. The loading ramps are fabricated from high – strength steel, having a high loading capacity. They will not deform when transporting heavy equipment.
  4. Polyurethane paint is applied, which offers a long service life and protects against rust.
  5. Spare parts from world – renowned brands are used, ensuring high quality while also helping to save costs.

3 Axle 80 ton LowBed Trailer frame



Specification：
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 40 – 100T
Axle: 13T/16T, FUWA / BPW / RICH Brand
Rim: 8.0 – 20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Lowbed trailer in production

Welcome to leave your inquiry! We will provide you with more details, price, catalog, drawing, and videos!
