40 foot Side Loader Trailer
40 foot Side Loader Trailer - 图片 2
40 foot Side Loader Trailer - 图片 3
40 foot Side Loader Trailer - 图片 4

40 foot Side Loader Trailer

5/5

The 40-foot Side Loader Trailer is a game – changer in cargo transport. It allows for side – loading of containers, which is more flexible than traditional methods. With a sturdy build to handle heavy loads, it’s ideal for busy ports, logistics hubs, and industrial yards, streamlining the container – handling process efficiently.
WhatsApp
Add to cart
Product – 40 – foot Side Loader Trailer

The 40 – foot Side Loader Trailer, branded RICH, is currently available for purchase at a price of $85,000. This trailer is highly functional and can carry out the self – loading and unloading of 20 – foot and 40 – foot containers on its own. It’s also capable of performing vehicle – to – vehicle transfer operations. With a maximum lifting capacity of 37 tons and an operating range that extends up to 4 meters, it serves a wide range of applications.



It plays a crucial role in the connection of railway, waterway, and empty container transportation. Besides its main function of handling containers, it has the added versatility of using pallets to load, unload, and transport various types of equipment and materials. It can also be used for container stacking operations and can cooperate with railway flat cars to deliver containers.



Specification

  • Max. lifting capacity: 37 Tons
  • Dimension (LWH): 1410025004200mm
  • Axle: 3 axles * 13 ton (220mm brake pads)
  • Tire: 12 pieces, 12R22.5

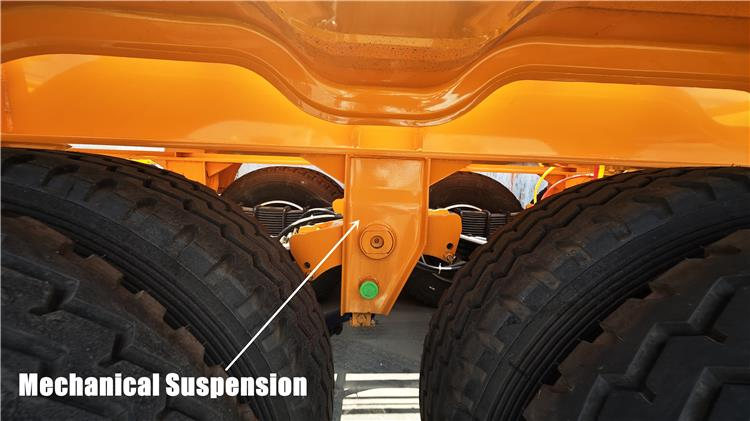

  • Suspension: Heavy – duty type mechanical spring suspension
  • Kingpin: 3.5 – inch bolted type

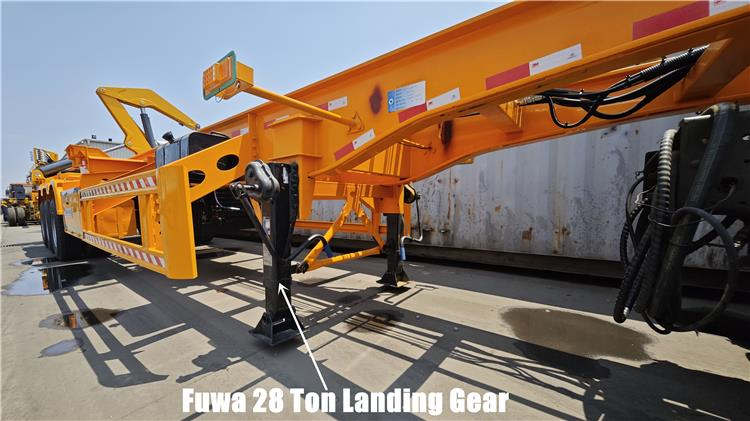

  • Landing gear: Fuwa
  • Power source: Power take – off (equipped)



Package
The trailer is carefully packaged and shipped using tarpaulin. This ensures its safe transportation. The tarpaulin not only effectively safeguards the vehicle but also maintains its safety and integrity during transit. In case the trailer encounters rain, a humid environment, or dust pollution during transportation, the tarpaulin packaging can prevent water vapor from eroding and dust from adhering, guaranteeing that it reaches the customer in excellent condition.



Advantages



  • The RICH 40 – foot side loader trailer makes use of multi – camera image monitoring technology. This technology provides significant support for safe driving as well as accurate positioning and parking.
  • The bottom vehicle of the trailer is equipped with bidirectional traction technology. This feature enables the vehicle to perform U – turn operations more flexibly in narrow spaces.

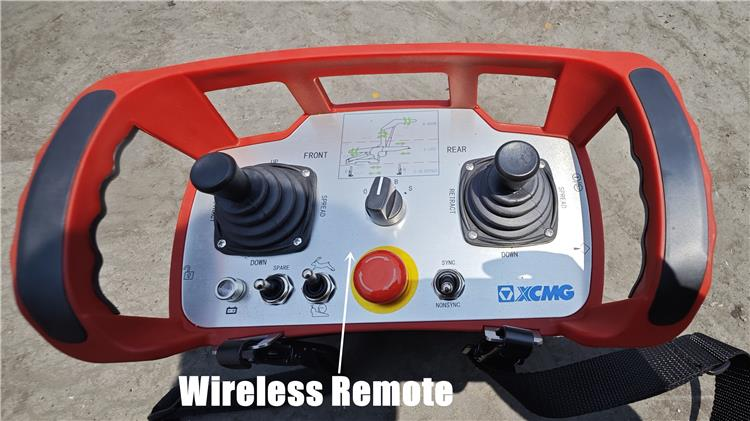

  • It comes with a wireless remote control system for convenient operation.
  • During operation, one side of the outrigger is fitted with an intelligent anti – rollover protection system. This system monitors the stability of the entire machine in real – time. If there is any risk of tilting, it can automatically sound an alarm and effectively lock to prevent accidents. The other side of the outrigger has a baffle for protection, which stops the container from entering a dangerous area.
  • High – quality hydraulic seals, high – level electrical protection, a safe and reliable locking mechanism, and a practical and safe emergency stop function all contribute to enhancing the safety of the trailer.
  • The trailer adopts patented technologies such as the sliding container self – loading and unloading transport vehicle technology, the upper and lower double lifting chain technology, the base bidirectional guide structure, the parallel staggered layout of the sliding cylinder, and the action interlocking technology of the boom and the outrigger. These technologies make the product technologically advanced, leading – edge, and highly reliable.



SKU: RICH9402168
GTIN: 6975766117290
MPN: RICH9402168



Don’t miss out on this opportunity to own a top – of – the – line 40 – foot Side Loader Trailer from RICH. [Picture] [Quotation] [WhatsApp] [Add to cart]
