150 Ton Lowboy Trailer

5/5

The 150 Ton Lowboy Trailer is a heavy – duty transport solution. With a low – profile deck that lowers the center of gravity, it ensures stability during transit. Multiple axles evenly distribute the 150 – ton load, enabling safe hauling of large construction machinery, industrial equipment, and over – sized components. It’s engineered for sectors like construction, manufacturing, and infrastructure, delivering reliable long – distance transport.

Products

150 Ton Lowboy Trailer

39000 USD
The price may vary based on different parameters. This figure serves only as a reference.



RICH gooseneck lowboy trailers come in 2/3/4/6 – axle configurations, with load – bearing capacities spanning from 40 to 120 tons. We’re also committed to offering customized solutions to meet your specific transportation needs.
SKU: 150 Ton Lowboy Trailer
GTIN: 06975766110376
MPN: RICH9409007
Brand: RICH

Product Description

RICH detachable gooseneck lowboy trailers are purpose – built for transporting excavators, construction equipment, and large machinery.



The main beam of our 4 – axle 150 – ton lowboy with a dolly trailer is crafted from HG60 high – strength structural steel. HG60 steel has a yield strength of ≥ 620MPa. It’s far more durable and robust than ordinary steel, boasting five times the bearing capacity of a Q345 steel trailer. The removable gooseneck lowboy trailer by RICH features a double – layer reinforcement on the gooseneck and upper and lower plates.



RICH can manufacture 2/3/4 – axle lowboy trailers with capacities of 60/80/100/120 tons. To satisfy your transportation requirements and local regulations, we offer custom – configured removable detachable gooseneck lowboys.

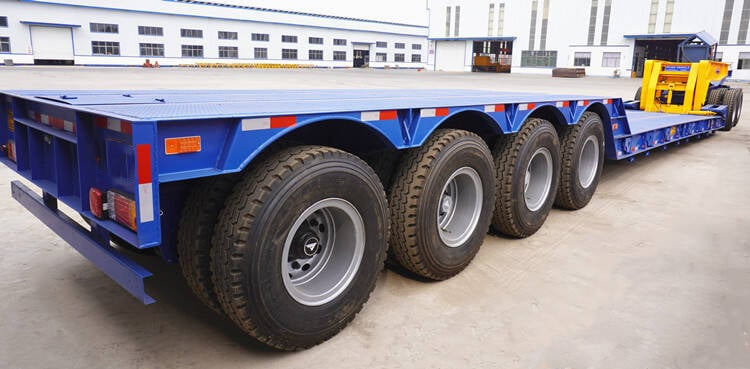

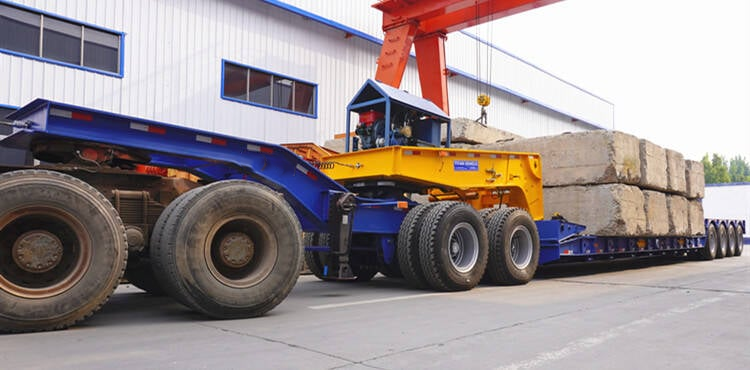

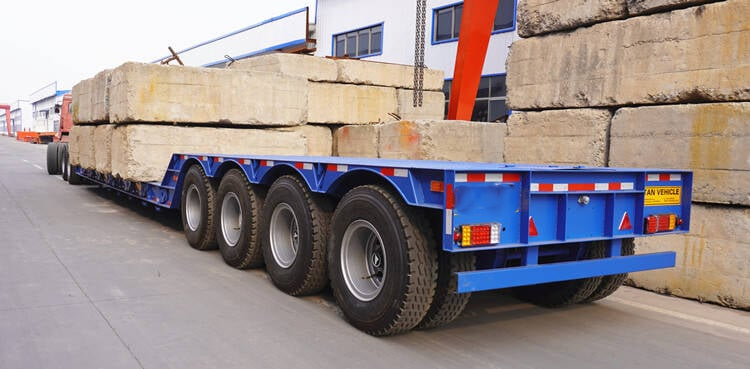

  • 4 – axle 150 – ton removable gooseneck lowboy with dolly trailer testing
  • 4 – axle 150 – ton removable gooseneck trailer with dolly for sale
  • 4 – axle 150 – ton detachable gooseneck trailer with dolly for sale
  • 4 – axle 150 – ton detachable gooseneck lowboy trailer with dolly details display

Specification

  • Overall dimension: 17900mm × (2500 + 250×2)mm × 2200mm (platform 800mm)
  • Loading capacity: 150 tons
  • Axles: 4 axles with 2 – axle dolly
  • Tire: 16 units, with options including 8.25R20/10.00R20/11.00R20/12R22.5
  • Suspension: Mechanical suspension or air suspension
  • Spring leaf: 120(W)mm×16(Thickness)mm×10 layers
  • Landing gear: JOST/FUWA brand
  • Tare weight: Approximately 9.5 – 19T
  • Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I – beam 10/8/10; made of HG60 high – strength steel.
  • Bottom Platform: 5mm thick checkered plate
  • Hydraulic cylinder: 12KW diesel engine with hydraulic station
  • Ramp: Spring or hydraulic type
  • ABS: Optional
  • Valve: WABCO valve
  • Light: LED light (specially designed for overseas markets)
  • Voltage: 24V
  • Tool box: 1 set
  • Painting: Polyurethane paint, providing long – term protection against rust



Welcome to submit your inquiry! We’ll offer more details, such as price, catalog, drawing, and videos.
